Product Description:
Can produce all kinds of customized industrial remote control, can
be used for pumping machinery, high altitude machinery, lifting
machinery, port machinery, coal mining machinery and other kinds of
special industrial applications. Remote control category: handheld
and strap, 1, handheld remote control, twelve buttons, with 1.35
inch display, 2, strap, large size and small size two, can be
installed linear handle, universal handle, button switch and
button, can choose 2.42 inch, 3.5 inch, 4.3 inch screen. 3,

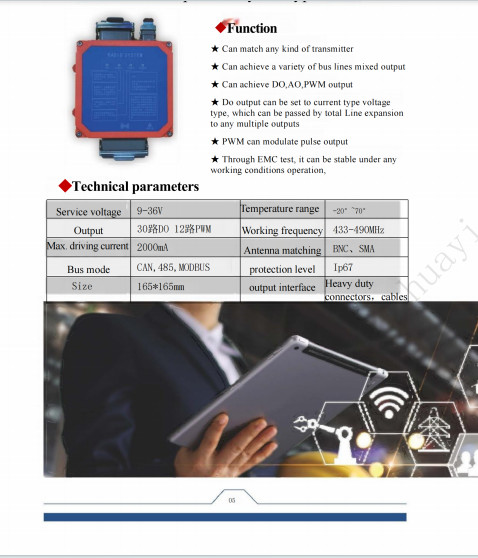

receiver, can choose voltage and current type input and output, can
be compatible with 232,485, can, modbus and other bus output
Without display screen1. The transmitter and receiver are normally powered on, the boom
handle is in the middle position, and the communication is normal: 2. Press the “emergency stop” button, then press the "Start” button
once, and press the button "Start + Flame out" on the side of the
button of "Displacement +" at the same time. 3. After the button is effective, the transmitter is in the
switching mode. Press the side button to select the model, and the
"left swing cylinder" key will select Sany, the indicator light
flashes red once, green once,"Right swing cylinder" key selects
Zoomlion, the indicator light flashes red once, green twice; "Flame
out" key select Xugong, the indicator light flashes red once, green
three times; If the "Start" key select Foton, the indicator light
flashes red once and green four times. With display screen | With display screen | | 1. The transmitter and receiver are normally powered on, the boom
handle is in the middle position, and the communication is normal; | | 2. On any interface of the remote control screen, press the
“emergency stop” button and press the four combination keys on the
right side: “Start + ringing + automatic arm extension + automatic
arm extension” to enter the model selection interface; | | 3, In the model selection interface, press the "swing cylinder" key
to select the type. Press the "Menu" key to confirm the type. Gray
displays setting succeeded. |
| Universal remote control boom current setting instructions | | Setting current refers to the type of pump that sets the current of
the boom through the receiver PWM pulse | | Setting method | | Without display screen | | 1. The transmitter and receiver are normally powered on, the boom
handle is in the middle position, and the communication is normal: | | 2. Press the combination key, "Left swing + right swing + Start",
enter the boom adjustment mode, and the LED indicators of the
transmitter flash alternately: | | 3. Push the boom handles that needs to be adjusted up and down,
press the "left swing cylinder" key to increase the current, "right
swing cylinder" key to reduce the current, and press the "horn" key
to save the Settings. |
| With display screen | | 1. The transmitter and receiver are normally powered on, the boom
handle is in the middle position, and the communication is normal; | | 2, Press "Menu" to enter the diagnostic-debugging interface, press
the combination key "swing cylinder + brightness adjustment + start
+ ringing", the display screen will display "adjusting boom
.......". | | 3. Push the boom handles that needs to be adjusted up and down,
press the "Start" key to increase the current, the "ringing" key to
reduce the current, and press the "swing cylinder " key to save the
Settings. | | Note: Push the boom handle to the bottom to adjust the maximum
value, slightly push the boom handle to the minimum value of action
adjustment | | Indicator light | | Transmitter: Turn on the transmitter, the indicator light of the
transmitter flashes twice and goes off, the transmitter is not
connected with the receiver Signal: The transmitter flashes and
disappears, the transmitter and the receiver are connected with the
signal; Transmitter red light is blinking. Battery is dead. | | Receiver: Receiver panel four lights, "Power", "Emergency Stop",
Wireless communication ", bus data ". |
|
|---|
Customization:
Concrete Pump Remote Customization Service
Brand Name: Construction Machinery
Model Number: Instead of HBC
Place of Origin: China
Standby Time: 20 Hours
Communication Distance: Greater Than 150 Meters
Operating Frequency: 433-490MHz
Functions: Start/Stop, Forward/Reverse, Emergency Stop, etc.
Housing Material: PA6+GF30
Key Words: Wireless Remote for CIFA concrete pump Sany Concrete
Pump, Zoomlion Concrete Pump Remote Controller
| The power | The power adapter connects to the 12-32VDC power supply, and the
indicator is on |
| Emergency stop | The receiver power is energized, not connected to the transmitter
signal, indicator light on |
| The wireless communication | The receiver is energized, connected with the transmitter signal,
and the indicator light on |
| The bus data | The receiver is energized, the boom handle is pushed, and the
indicator light on |
