    Hydraulic Lubrication Synchronous Pump For Concrete Mixer Truck AH-XD6/ 0.3/0.20 S

    Ask Lasest Price
    Brand Name : На заказ.
    Model Number : AH-XD6/0.3/0.20S
    Price : 100-168USD Price is negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50pcsday
    Delivery Time : 5-8week day
    • Product Details
    • Company Profile

    Hydraulic Lubrication Synchronous Pump For Concrete Mixer Truck AH-XD6/ 0.3/0.20 S

    The company specializes in the production of all kinds of high, medium, low pressure dry, thin oil lubrication equipment, hydraulic components, fluid connectors, support to map customization, large volume support logo customization, welcome overseas customers to come to buy, excellent price, good quality.


    Product description

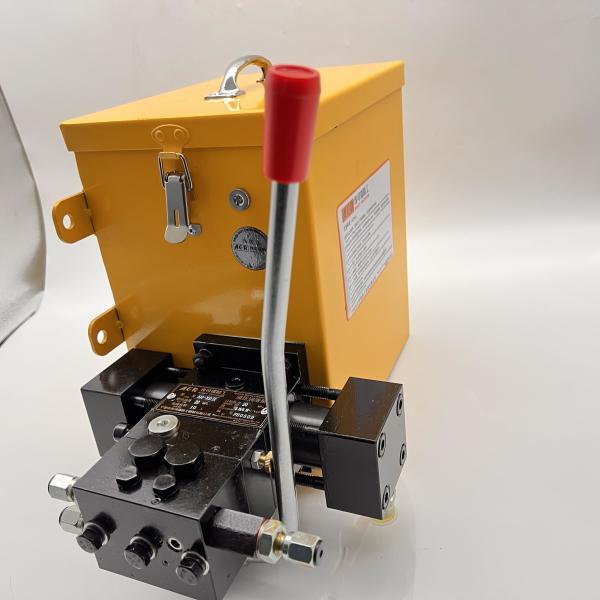

    AH-XD6/0.3/0.20S hydraulic synchronous lubrication pump

    Small steel oil drum for locations with limited space
    Hydraulic power drive, reliable performance, suitable for continuous lubrication
    The ordinary type is equipped with 3 fat outlets, of which two synchronous outlets and the drive hydraulic oil commutation synchronous alternate fat
    The model with hand pump is equipped with a hand pump module for the circulation port for start-up, completion maintenance or continuous work guarantee
    The booster model drives the oil pressure and the grease pressure to 1.7 times
    In 8-port and 10-port multipoint models, any symmetrical fat outlet is synchronized with the drive hydraulic source, and the filter and distributor of the lubrication system can be omitted to reduce costs
    ALQ-100 oil filter is optional
    Suitable for hydraulic source pressure in 16MPa~25MPa equipment lubrication
    It is suitable for concrete conveying pump of construction machinery and mine and underground construction machinery
    A progressive distributor can be configured for each outlet
    Model example
    AH - XD6 S / 0.3/0.20
    Hydraulic step lubrication pump - fat outlet nozzle diameter 6mm; Circulation port capacity 0.3ml/ cycle; Two simultaneous displacement 0.2ml/ cycle; Drive joint port forward; Stainless steel oil drum.
    8AH-XDV6/O/O.2/UC
    Hydraulic lubrication pump - multi-point type with 8 fat outlets; Fat outlet nozzle diameter 6mm; All mouth capacity 0.2ml/ cycle; Drive the connector up and paint the oil drum with carbon steel

    Hydraulic Lubrication Synchronous Pump For Concrete Mixer Truck AH-XD6/ 0.3/0.20 S

    Hydraulic Lubrication Synchronous Pump For Concrete Mixer Truck AH-XD6/ 0.3/0.20 S


    Technical parameter
    Model: AH-XD(Ordinary type) AH-XD Manual AH-XD Supercharged AH-XD Manual + Supercharged AH-XDV Multi-point model
    Nominal pressure (MPa) : 16~19
    The best driving oil pressure (MPa) : 16~19
    Maximum driving oil pressure (MPa) : 25
    Boost ratio: /
    Circulation port volume (ml/cy) : 0.2/0.3/0.4
    Synchronous port displacement (ml/cy) : 0.15/0.2/0.3
    Number of circulation (PCS) : 1
    Number of synchronous ports (PCS) : 2
    Manual pump pressure (MPa):/
    Manual pump capacity (ml/cy) : /
    Barrel volume (L) : 15
    Standard drive port (mm) : M16×1.5 (inner cone 24°)
    Applicable medium (lithium grease) : O#~000#
    Note: When customizing the driver port, add the model to the driver port
