PRODUCT DESCRIPTION
The pump truck filter is a powerful device that protects equipment
and improves work efficiency by efficiently filtering liquids and
is an important part of the pump truck system.
How to use:
1. Installation: the pump filter is correctly installed on the
liquid flow path, generally installed at the connection of the pump
head or the pipeline entrance.
2. Operation: Open the inlet and outlet valve of the pump car
filter, start the pump car, and adjust the flow control valve as
required.
3. Cleaning and replacement: When the filter element is
contaminated or blocked, it is necessary to close the import and
export valve, remove the filter element for cleaning or
replacement, and then reinstall it.
INTRODUCTION
The QUQ series breather fiter is the modification of the EF
saries.Itis compact and nice looking,F-lter element is made of
glass fibre with high elficiency.
PAF-series breather fiters are used on the tank The filter is
composed ofan air fiter,an air inlet check valve ,an exhaust check
valve and an oil fiter.During operation of hydraulic system.The oil
level in the tank changes frequen-tly and the air above the oil
surface ftiows in and out in turn,Hence the breatherfiter wil keep
air in the tank clean and under right pressure.
| Model | PAF₁-*-*-*L | PAF₂-*-*-*F |
| Check valve setting | 0.02 0.035 0.07 | 0.02 0.35 0.07 |
| Air flow rate(m/min) | 0.45 0.55 0.75 | 0.45 0.55 0.75 |
| Air fitraion(μ /m) | 10 20 40 | 10 20 40 |
| 0il filter mest (mm) | None | 0.5 |
| Temp.range(℃) | -20~+100 | -20~+100 |
| Connet type | Thread | Flange |
| Weight (Kg) | 0.2 | 0.28 |

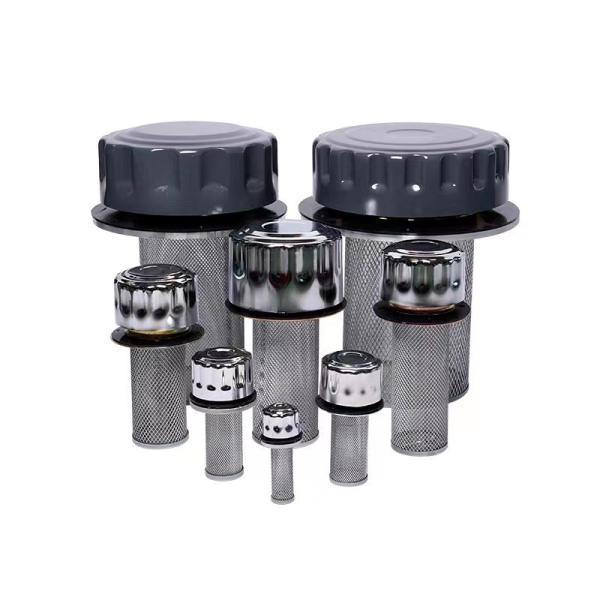

Product Picture
Since its inception,alw- ays adhere to the pioneering and
innovative,seeking truth and development of the b- usiness
philosophy,always adhere to high-quality and
efficient,customer-oriented service purposes.After years of
pioneering and enterprising,product quality has b- een steadily
improved,the enterprise's good reputation by the industry users
praise!
The company specializes in the production of all kinds of high,
medium, low pressure dry, thin oil lubrication equipment, hydraulic
components, fluid connectors, support to map customization, large
volume support logo customization, welcome overseas customers to
come to buy, excellent price, good quality.
