    4714 Truck Zoomlion Concrete Pump Parts Coreless Filter

    Ask Lasest Price
    Model Number : 4714
    Brand Name : LIZHENG HYDRAULIC
    Price : Price negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100pcs day
    Delivery Time : 5-8 work days
    Certification : Available
    • Product Details
    • Company Profile

    4714 Truck Zoomlion Concrete Pump Parts Coreless Filter

    product description

    4714 series "coreless" high pressure filters

    Product features:
    1. Efficient filtration: The pump filter adopts an efficient filter element, which can effectively remove impurities and solid particles in the liquid.
    2. Strong corrosion resistance: the pump filter is usually made of corrosion-resistant materials such as stainless steel, which can adapt to the filtration needs of various liquids.
    3. Compact structure: the pump filter is usually compact in design, small in size, easy to install and maintain.
    4. Easy maintenance: the pump filter is easy to disassemble and clean, and the maintenance cost is low.


    4714 series technical data

    Maximum working pressure 450bar

    Ultimate fatigue pressure 400bar

    Filter element with bypass valve crushing pressure difference of 10bar,With all petroleum-based hydraulic fluids, water glycol, water in oil emulsion Compatible with most synthetic fluids and lubricants


    4714 series technical specifications

    brandLIZHENG HYDRAULIC
    model4714
    PricePrice negotiation
    OriginSteel

    Filter assembly data

    Temperature range

    Nitrile rubber seal: -43℃ to +107℃

    Fluorine rubber seal: -29℃ to +120℃

    The maximum is 60℃ when using high water base liquid or water ethanol

    MaterialsFilter head, ductile iron castings: cup shell, carbon steel filter core body
    Sealing partsNitrile or fluororubber 0 ring.
    Pressure rating

    Maximum working pressure: 450bar

    Rated fatigue pressure: 400bar

    Pressure test pressure: 675bar

    Burst pressure (typical):1600bar(minimum)

    Bypass valve setting valueSelect "B":3.4±0.3bar opening pressure
    Oil portImport and export same: 1/4",1¹/₂"BSP,SAE split flange.
    Set value4714 series: 2.4±0.3bar

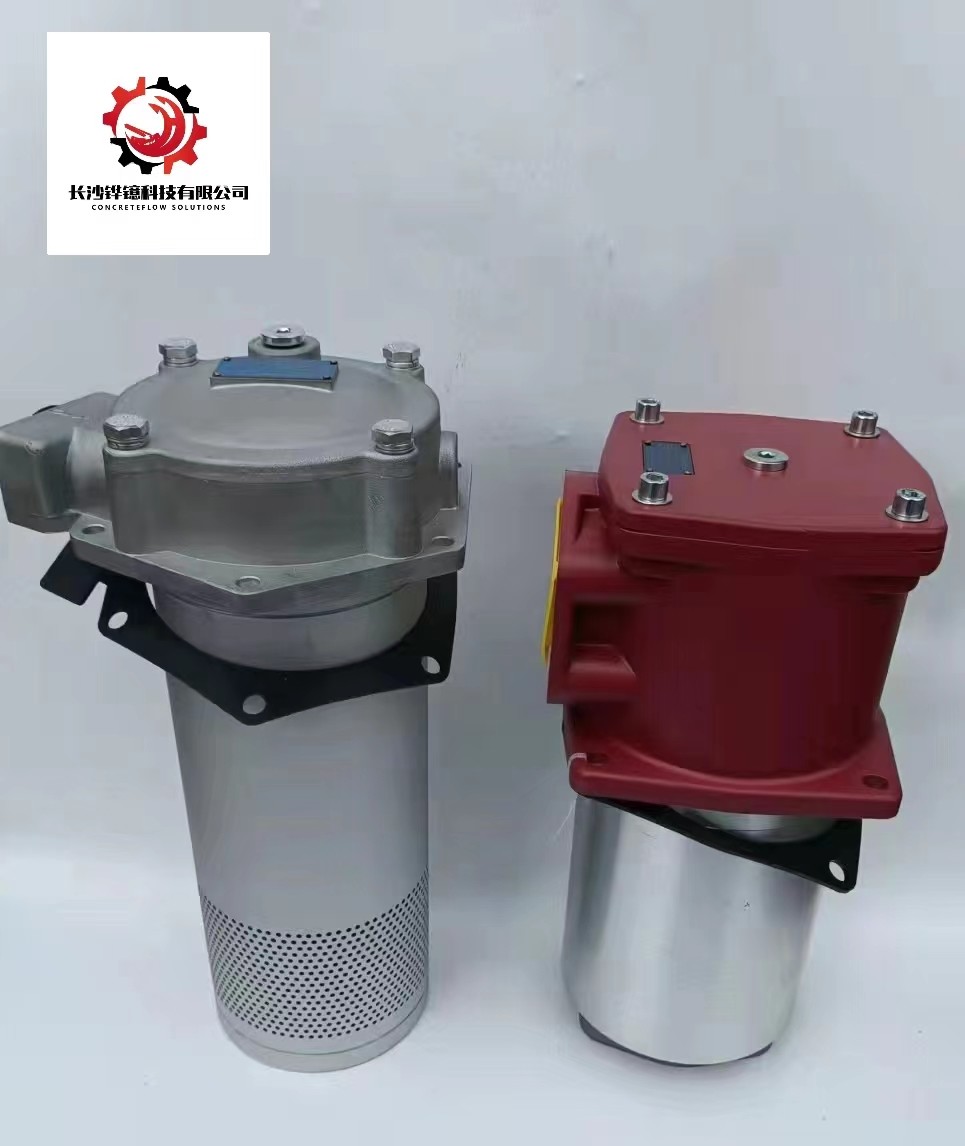

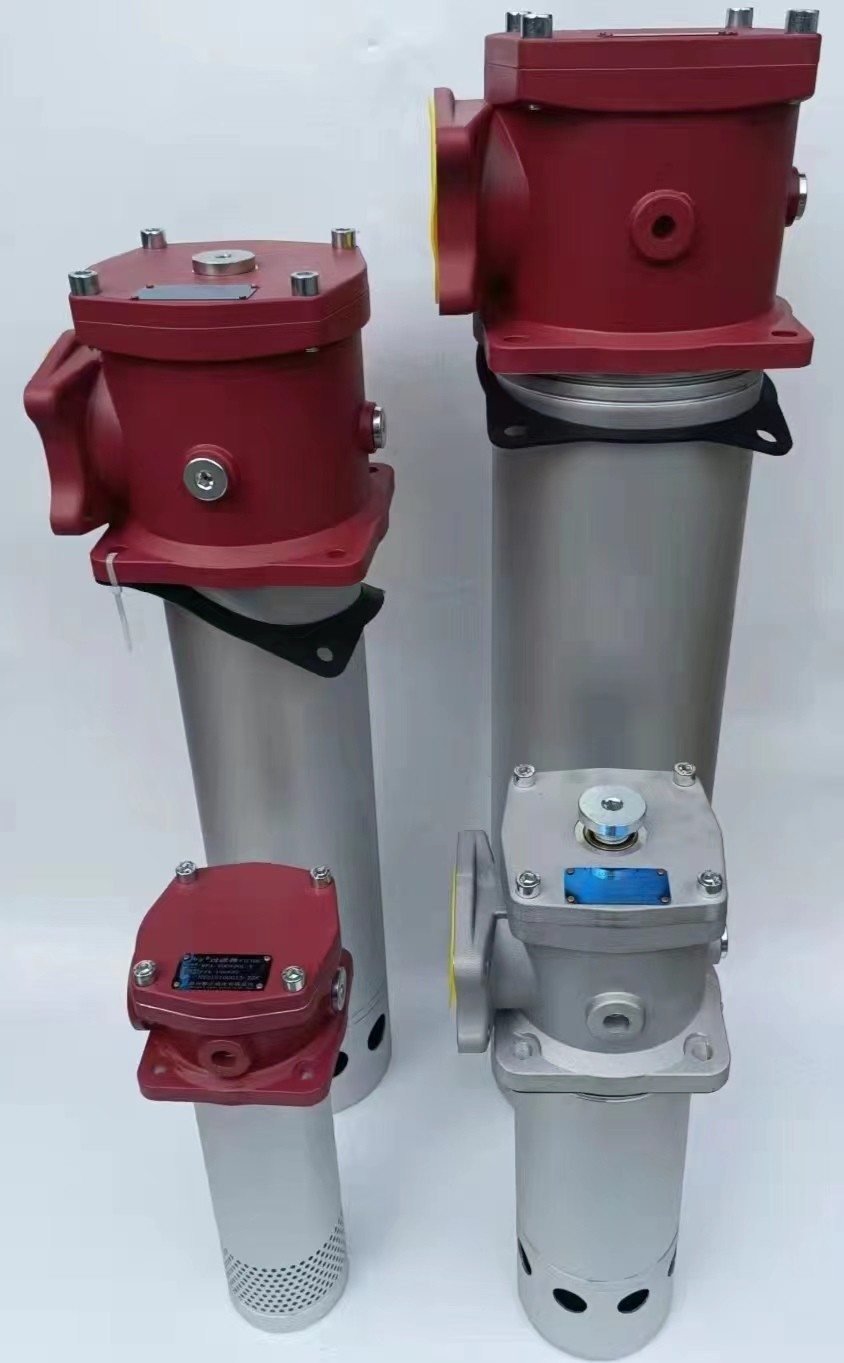

    Product Picture


    4714 Truck Zoomlion Concrete Pump Parts Coreless Filter

    4714 Truck Zoomlion Concrete Pump Parts Coreless Filter

    4714 Truck Zoomlion Concrete Pump Parts Coreless Filter4714 Truck Zoomlion Concrete Pump Parts Coreless Filter

    The company specializes in the production of all kinds of high, medium, low pressure dry, thin oil lubrication equipment, hydraulic components, fluid connectors, support to map customization, large volume support logo customization, welcome overseas customers to come to buy, excellent price, good quality.
    Наша компания работает над одноэтажным сервисом аксессуаров, обеспечивающим идеальное сотрудничество и превосходную производительность. Это облегчает поиск деталей, подходящих для вашего насоса, экономит ваше время и энергию.
