    Hydraulic Sany Concrete Pump Parts Synchronous Grease Lubrication Pump

    Ask Lasest Price
    Brand Name : Support customization
    Model Number : AH-XD6/0.3/0.20S
    Price : 100-168USD Price is negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50pcsday
    Delivery Time : In stock
    • Product Details
    • Company Profile

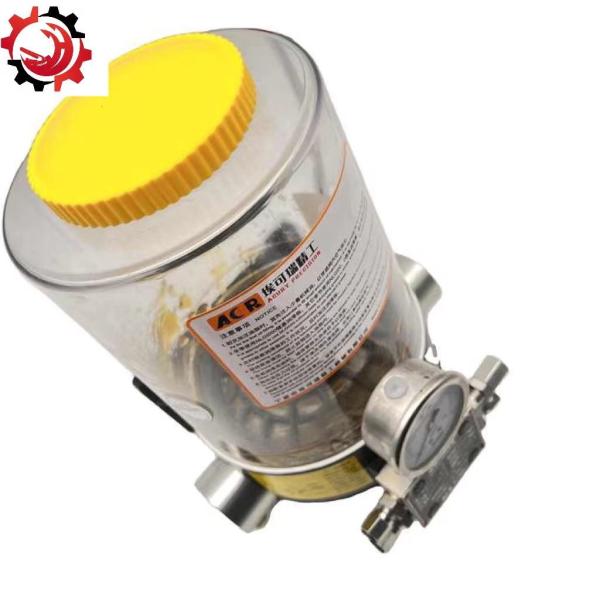

    Hydraulic Sany Concrete Pump Parts Synchronous Grease Lubrication Pump

    The company specializes in the production of all kinds of high, medium, low pressure dry, thin oil lubrication equipment, hydraulic components, fluid connectors, support to map customization, large volume support logo customization, welcome overseas customers to come to buy, excellent price, good quality.


    Product description

    AH - 0.3/0.2 B6 / F:

    Hydraulic synchronous lubrication pump - fat outlet nozzle diameter 6mm; Circulation port capacity 0.3ml/ cycle; Two simultaneous displacement 0.2ml/ cycle; The special grease port on the right side is quick-insert interface type; Drive connector port down

    Technical parameter
    Model: AH-B
    Nominal pressure (MPa) : 16~19
    The best driving oil pressure (MPa) : 16~19
    Maximum driving oil pressure (MPa) : 25
    Circulation port displacement (ml/cy) : 0.20/0.30/0.40
    Synchronous port displacement (ml/cy) : 0.15/0.20/0.25
    Number of circulation (PCS) : 1
    Number of synchronous ports (PCS) : 2
    Relief valve overflow pressure (Map) :20
    Barrel volume (L) : 4
    Standard drive port (mm) : M16×1.5 (inner cone 24°)
    Applicable medium (lithium grease) : O#~000#
    Note: When customizing the driver port, add the model to the driver port
