    SYM5538THB 670C-10 2020year sany 67m Volvo chassis country-five and good in condition

    Ask Lasest Price
    Brand Name : Sany
    Model Number : 67M
    Certification : Available
    Price : Negotiable
    Payment Terms : L/C, T/T,,
    Supply Ability : 2pcs/per month
    Delivery Time : 20-30days
    • Product Details
    • Company Profile

    SYM5538THB 670C-10 2020year sany 67m Volvo chassis country-five and good in condition

    SYM5538THB 670C-10 2020year sany 67m Volvo chassis country-five and good in condition

    Product Description:

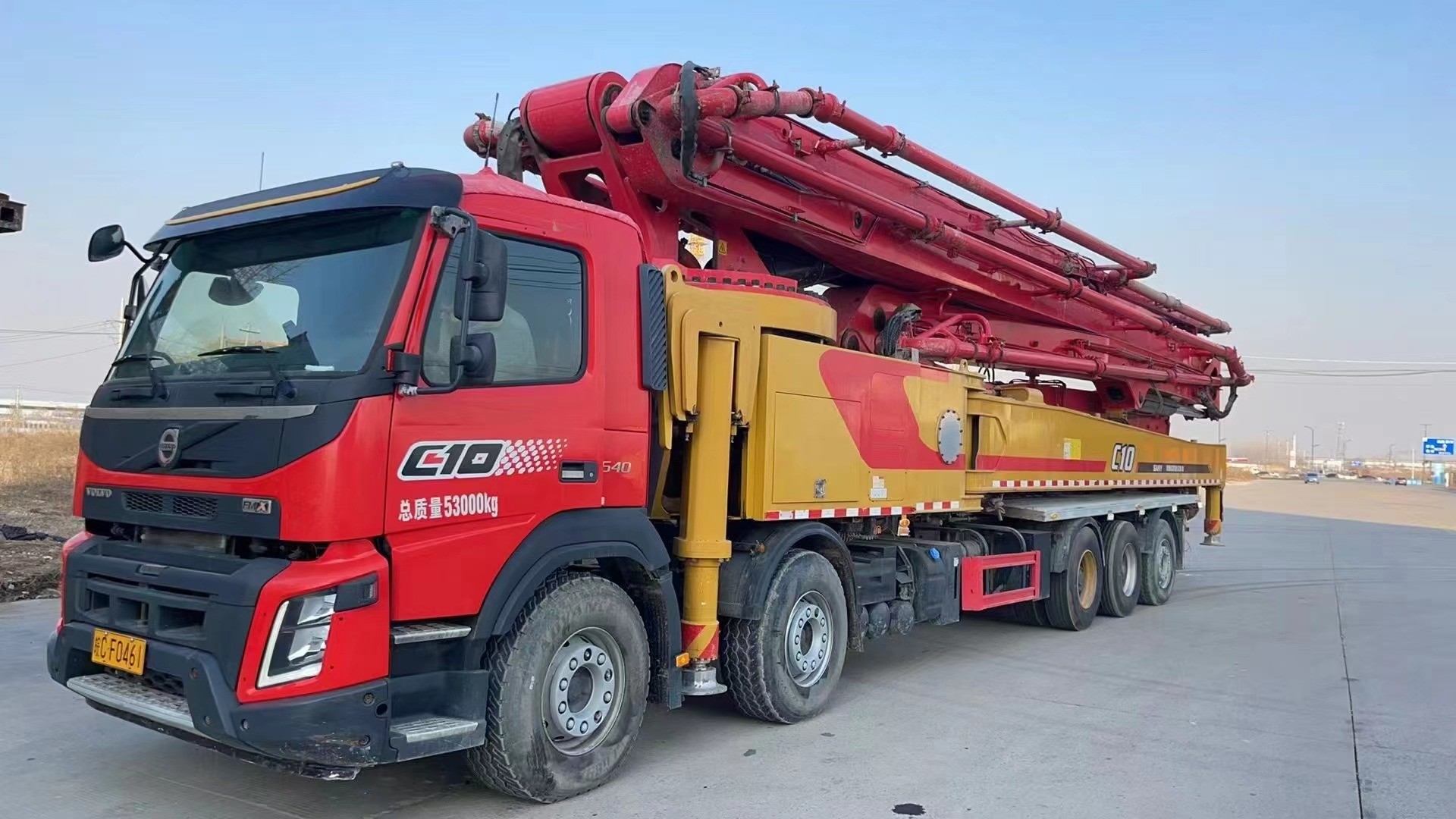

    • The 67-meter concrete pump truck is a kind of equipment used for concrete transportation on construction sites. It has a base, a folding arm and a pumping system.

    • The folding arm is the key part of the pump truck, which is composed of a number of retractable arm segments. The arms can be freely deployed or folded when needed to achieve concrete delivery at different heights and distances. The arm length of the 60 meter concrete pump truck can reach 60 meters, allowing it to cover higher construction locations.

    • The 67-meter concrete pump truck has a large working range and flexibility, and can efficiently complete the concrete conveying task on the construction site. It is often used in high-rise buildings, Bridges, tunnels and other engineering projects, and can easily cover higher construction locations. The height and pumping capacity of this pump truck make it suitable for large-scale projects, providing an efficient and accurate concrete transport solution.

    Features

    NONameParameter
    Vehicle parameters
    1Total length16600mm
    2Overall width2550mm
    3Total height4000mm
    4All up weight53000kg
    Boom leg parameters
    6Vertical height of boom66.2m
    7Horizontal length of boom61.1m
    8Vertical depth of boom44.5m
    9Minimum development height16.8m
    10First arm length13735mm
    11First arm corner89 °
    12Second arm length10615mm
    13Second arm corner180 °
    14Third arm length10225mm
    15Third arm corner180 °
    16Fourth arm length13583mm
    17Fourth arm corner230 °
    18Fifth arm length8210mm
    19Fifth arm corner180°
    20Sixth arm length5832mm
    21Sixth arm corner100°
    22Turntable rotation Angle+ 360 °
    23Front leg spread width12444mm
    24Spread width of rear leg15102mm
    Pumping system parameters
     Concrete theoretical displacement low pressure180m³/h
     Concrete theoretical displacement high pressure120m³/h
     Theoretical pumping pressure low8.3Mpa
     Theoretical pumping pressure High pressure12Mpa
     Conveying cylinder inner diameter:260mm
     Cylinder stroke1900mm
     Hydraulic systemOpen type
     System oil pressure32Mpa
     Tank volume880L
     Tank volume700L
     Conveying pipe diameter125mm
     End hose length3m
     End hose pipe diameter125mm
    Chassis parameter
     Chassis brand:Volvo
     Chassis typeFM540 104R B
     Engine typeD13C540S EUV
     engine power397kW/1800rpmkW/rpm
     Emission standardCountry V
     Fuel tank capacity415L
     Displacement:12.777L
     Maximum speed85km/h
