PSL PSV Type Multiple Directional Valve Hydraulic Components
Solenoid Valve Hydraulic Valve
PEODUCT DESCRIPTION
Pump truck multitandem valve is an important part of pump truck construction machinery, which is
mainly used to control the work of multiple actuators in the
hydraulic system
description
Link block
The oil inlet link of the multi-way valve is equipped with the
pressure oil inlet P and the return tank interface R, in addition
to the control interface LS and the measurement interface Z, M
according to the type of oil source, quantitative pump and variable
pump
According to the connection thread specifications of P and R ports,
G1 and G1 1/4
Fuel supply with or without pilot control
With or without pressure limiting
Electromagnetic unloading with or without pump
selector valve
The proportional direction valve is fixed between the connecting
block and the tailplate with three screws (pull rods), and a group
can be equipped with a maximum of 10 reversing valves. Under normal
circumstances, the number of reversing valves is not more than 8,
if the number of reversing valves is equal or more than 9, it is
recommended to divide into two groups of multi-way valves. 9 When
connecting more than one reversing valve, if the system can not be
divided into two groups of multi-way valves, it is necessary to
order a strengthened tie rod attachment.
According to the medium function and flow of the reversing valve
With or without secondary pressure limiting, N unlimited pressure,
C type, AB type
According to the control mode, pure manual, electronic control,
hydraulic control, friction positioning
With or without accessibility
tail-plate
As the terminal of the combined multiway valve, it is selected
according to the internal or external oil return interface T with
control oil, with or without additional LS, and oil inlet P, oil
return port R, etc.
Internal or external discharge connection T with pilot control of
oil return
Breaking of the pump circulation circuit with or without additional
LS inlet
Product Parameter
| model | PSL PSV type |
| brand | OEM |
| range of application | Various hydraulic equipment |
| Material | carbon steel |
| applicable temperature | -20~65 |
| working pressure | Pmax420bar(6000psi) |
| product application | Construction machinery, lifting machinery, municipal vehicles,
special vehicles mining machinery, coal mining machinery, petroleum
machinery, drilling equipment, etc |
| pressure | 12VDC;24VDC |
| rate of flow | Qmax100L/min(32g/min)@min=3L/min |
| flow direction | reversing |
| drive mode | electromagnetism |
| host materials | 45 forging |
| applicable medium | oils |
| installing form | tubular |
| operating temperature | normal temperature |
| Pressure environment | high pressure |
| type | three way type |

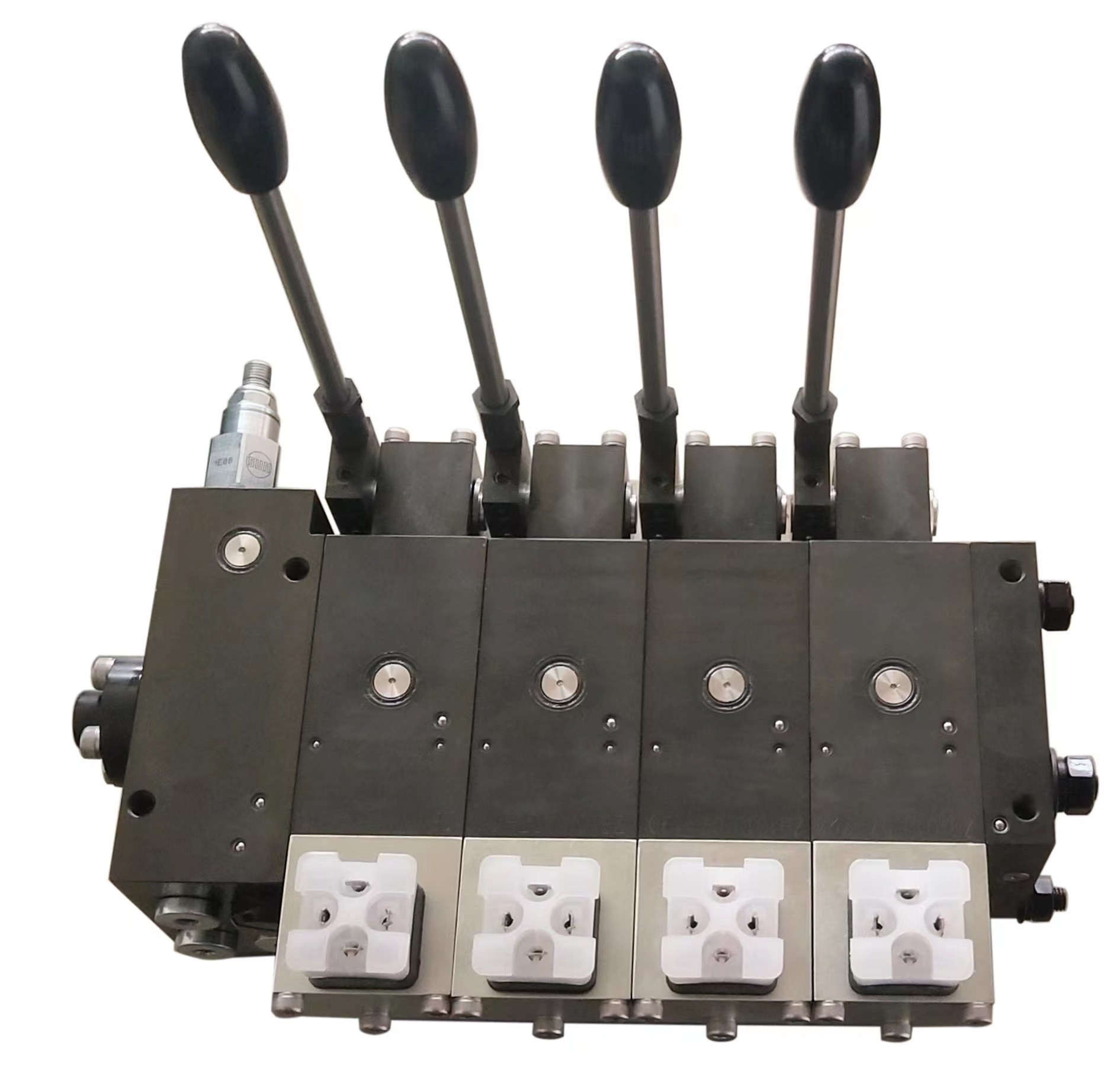

Product Picture
The company specializes in the production of all kinds of high,
medium, low pressure dry, thin oil lubrication equipment, hydraulic
components, fluid connectors, support to map customization, large
volume support logo customization, welcome overseas customers to
come to buy, excellent price, good quality.
