Can Sensitive Proportional Multiway Valve Hydraulic Valve Vacuum
Solenoid Valve Concrete Pump Truck Parts
PEODUCT DESCRIPTION
Pump truck multitandem valve is an important part of pump truck construction machinery, which is
mainly used to control the work of multiple actuators in the
hydraulic system
Hydraulic directional valve: used to control the conversion of
fluid flow direction, so that the hydraulic system can achieve
positive and negative rotation or stop.
The main function of the multiway valve of the pump car is to guide
the pressure oil flow in the hydraulic system from one outlet to
multiple entrances or from multiple entrances to one outlet to meet
the working needs of the hydraulic actuator in different parts.
description
summarize
The power amplifier, displacement sensor and CAN bus communication
module are integrated in the CAN load sensing proportional multiway
valve to realize the closed-loop control of the spool position and
improve the operation accuracy of the multiway valve.
CAN bus is a broadcast-based multi-master serial data communication
protocol, which has the advantages of high communication rate, high
reliability and good real-time, and the bus control has the
advantages of simple installation and wiring, and four cables can
realize the control of multi-disc valves.
advantage
Less harness, simple wiring
Integrated LVDT displacement sensor
Factory commissioning and calibration
High operating precision
The maximum flow rate can be limited
Diagnostic capability (fault detection, valve position)
Scope of application
Lifting machinery
Hydraulic system
Construction machinery
Lifting equipment
Forestry machinery
Municipal engineering vehicle
Electrical parameter
Operating voltage :12/24V DC
Maximum working current :10A
Single chip maximum current consumption :700mA(DC24V) 1.3 A (DC12V)
communication
Bit rate :100K/125K/250K/500K
Mailing address :0x600+ID
ID range :1... 127
Communication protocol: Refer to the CAN Communication Protocol
manual
Product Parameter
| model | CAN |
| brand | OEM |
| range of application | Various hydraulic equipment |
| Material | carbon steel |
| environment temperature | -30-70°C |
| Operating voltage | Pmax420bar(6000psi) |
| product application | Products are widely used in the military field, concrete and
construction machinery, coal mine, oil, mining, drilling, lifting
machinery and aerial, fire, sanitation and other municipal
vehicles. |
| pressure | 12/24V DC |
| Bit rate | 100K/125K/250K/500K |
| Maximum working current | 10A |
| drive mode | electromagnetism |
| Mailing address | 0x600+ID |

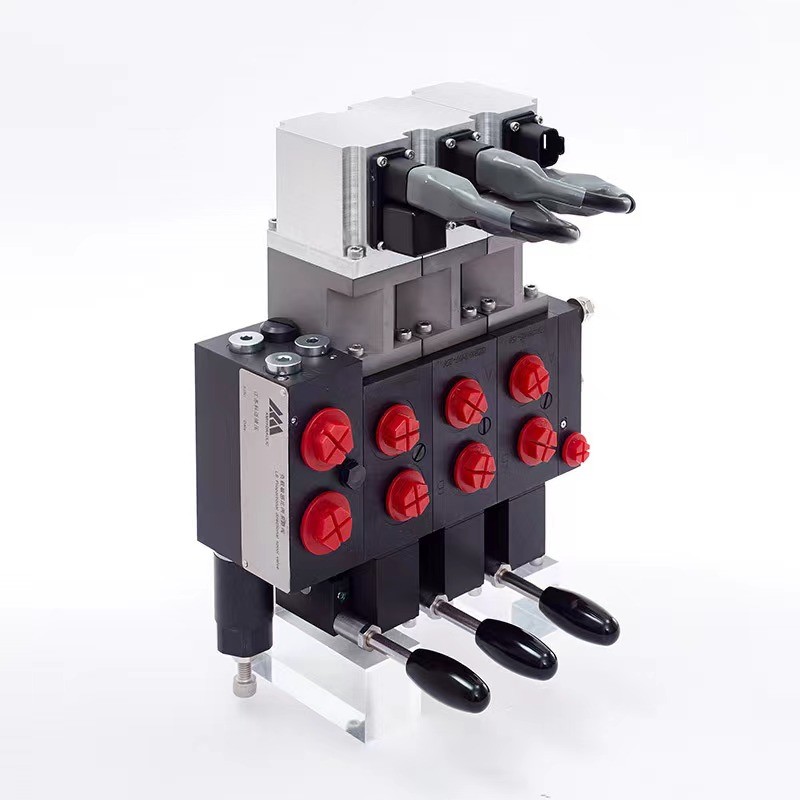

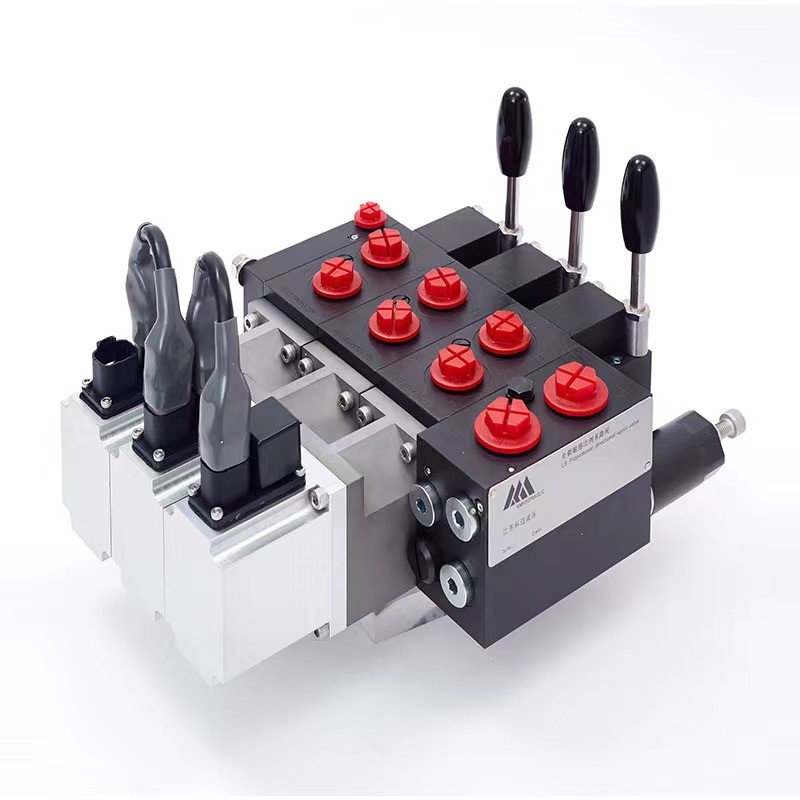

Product Picture
